Controller Comparison Table
PicoBoo Comparison
 |
 |
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|---|---|

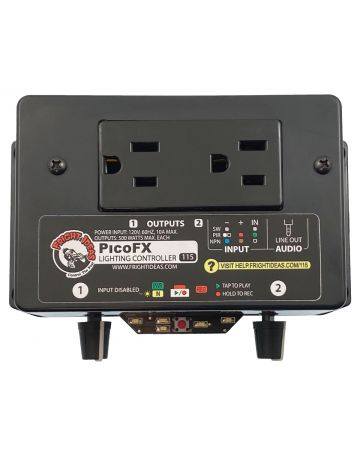

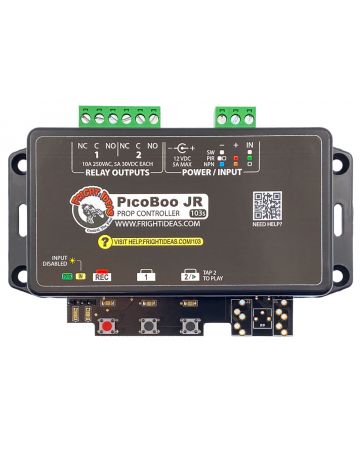

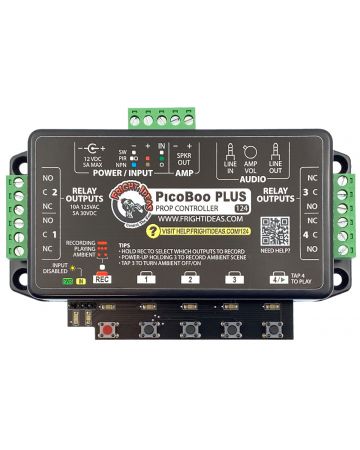

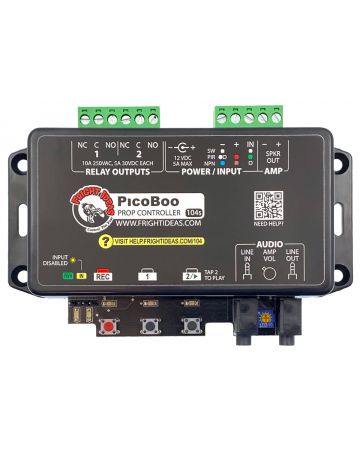

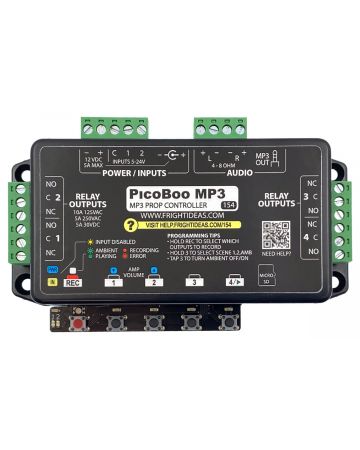

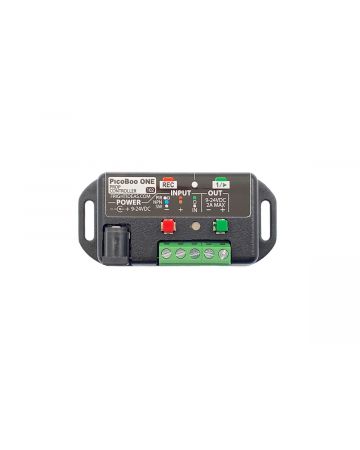

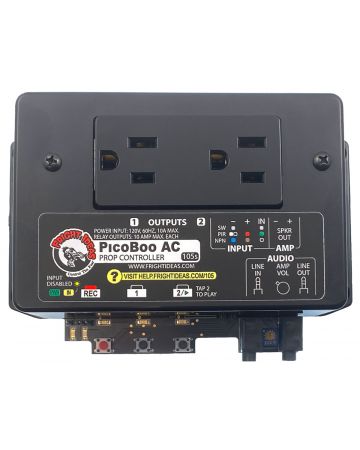

| PicoBoo ONE | PicoBoo Jr | PicoBoo | PicoBoo AC | PicoBoo Plus | PicoBoo MP3 | PicoFX | |
| Model | 102 | 103 | 104 | 105 | 124 | 154 | 115 |
| Inputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Outputs | 1 | 2 | 2 | 2 | 4 | 4 | 2 |
| Output Type | Solid-State | 10A Relay | 10A Relay | AC On-Off | 10A Relay | 10A Relay | AC Dim/On-Off |
| Ambient | Sound | Sound | Sound/Anim. | Sound/Anim. | Sound/Anim. | ||
| Sound | 2 min. | 2 min. | 2 min. | MP3 | MP3 | ||
| Animation | 1 min. | 2 min. | 2 min. | 2 min. | 2 min. | Hours | Hours |
| Amplifier | 30W Class D | 10W Class D | 30W Class D | 30W Class D | |||
| Director Support | Yes | Yes |
Flex / FlexMax Comparison
 |
 |
|
|---|---|---|

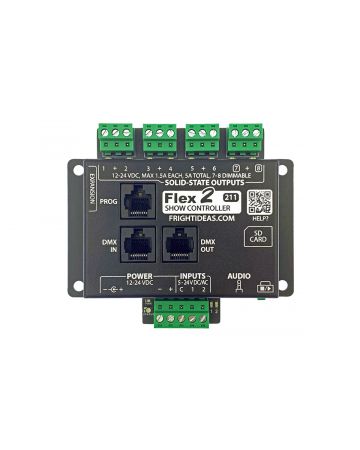

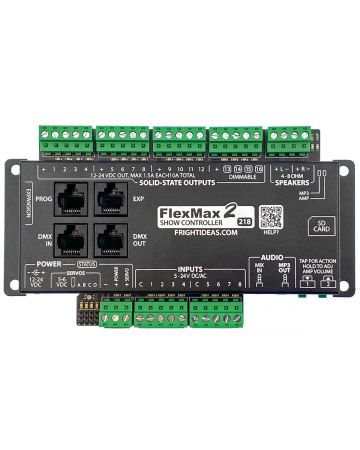

| Flex 2 | FlexMax 2 | |
| Model | 211 | 218 |
| Inputs | 2 | 8 |
| Outputs | 4 or 8 | 8 or 16 |
| Output Type | Solid-State | Solid-State |
| Ambient | Sound/Anim. | Sound/Anim. |
| Sound | MP3 | MP3 |
| Animation | Hours | Hours |
| Amplifier | 50W Class D | |
| Director Support | Yes | Yes |
| Dimmable Outputs | 2 | 4 |
| Internal Memory | 16MB | 128MB |
| Servo Outputs | 4 | |
| DMX Modes | Slave or Master | Slave or Master |
| DMX Channels | 0 to 512ch | 128 to 512ch |
| Max Inputs* | 10 | 32 |
| Max Control Outputs* | 32 | 64 |
Notes
1. Inputs can be added to a controller by adding a FlexMax or IO Expander.
2. Control Outputs can be added by adding an IO Expander, FlexMax, or some DMX decoders.
