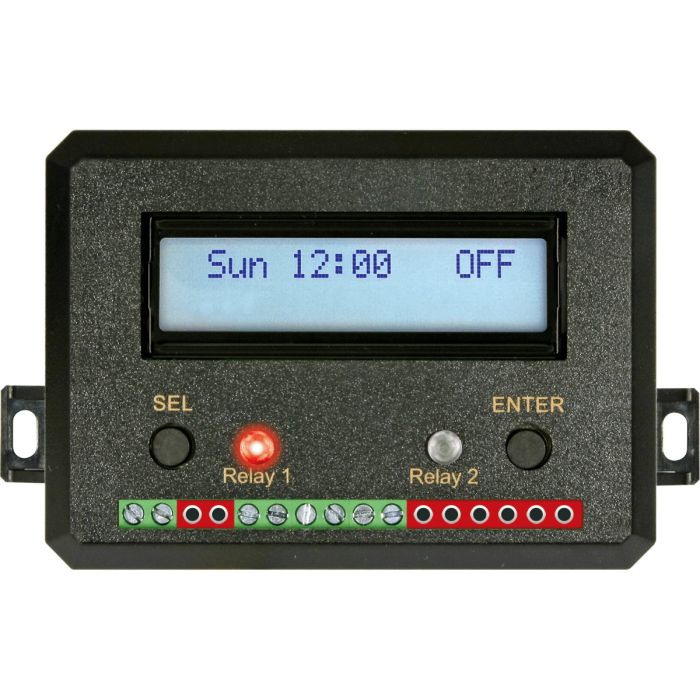

Timer Control

Use the timer control to play a show at a specific time on specific days.  Up to 60 events can be programmed.

An event can be set to run at a specific time on one or more days.  For example, you could have an event that runs weekdays at 5pm, or weekends at 12pm.  If you need multiple events on the same day you can create multiple events.  Events can be set to pulse the relay, turn it on, or turn if off.  If you want a show to loop from 10am to 5pm on weekdays you would setup one event at 10am to turn the relay on, and another at 5pm to turn it off.

Doesn't the Flex or FlexMax have a built-in Timer?

Some of our controllers have built-in timers, but those timers are designed to play a scene every X minutes or seconds.  They are not aware of the time of day or day of the week.

Specifications

• 12-24 VDC or AC power, requires 0.11A maximum
• Single 10 Amp Form C Relay Output (C, NO, NC) rated for 14VDC
• 60 Timed Events (Each event can pulse relay or turn it on,off and run on one or more days)
• Dimensions: 5"W x 3"H x 1-1/16"D  (125mm W x 75mm H x 33mm D)

Includes

• Timer
• Manual
