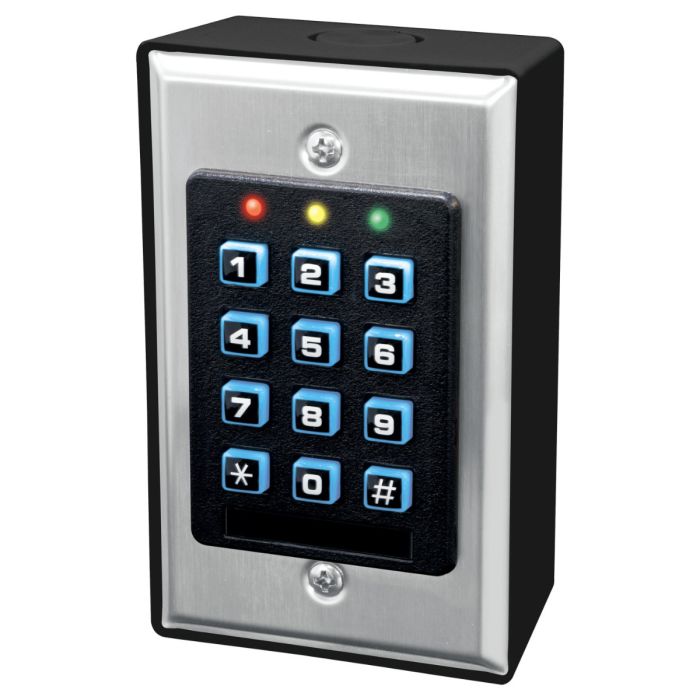

Keypad Control

Use this access control keypad to unlock a maglock or trigger a controller's input.  All keys are backlit for easy visibility.

A power supply is not included.  If you are using it as a trigger for a controller you can borrow power from the controller to power the keypad.  If you'll be using it to control a maglock or other device you may need a separate 12VDC power supply.

Specifications

• 12-24 VDC or AC power, requires 0.09A maximum
• Single 1 Amp Form C Relay Output (C, NO, NC) rated for 30VDC
• Relay can be set to activate for 1 to 99,999 seconds
• Code length from 4-8 digits
• Separate Egress input can be connected to an Exit button if used to control a door lock
• Assembled Dimensions: 4-5/8"H x 2-7/8"W x 1-15/16"D  (112mm H x 73mm W x 49mm D)

Includes

• Keypad
• Surface mount box (1.5 inches / 40mm deep)
